Formlabs 엘라스틱 50A 레진 (Elastic 50A Resin) V1
- 1리터 (1L)

쇼어(Shore)경도 50A의 탄성이 있습니다.

플렉서블 레진과는 달리 여러차례 늘리고 압축하더라도 쉽게 찢어지지 않습니다.

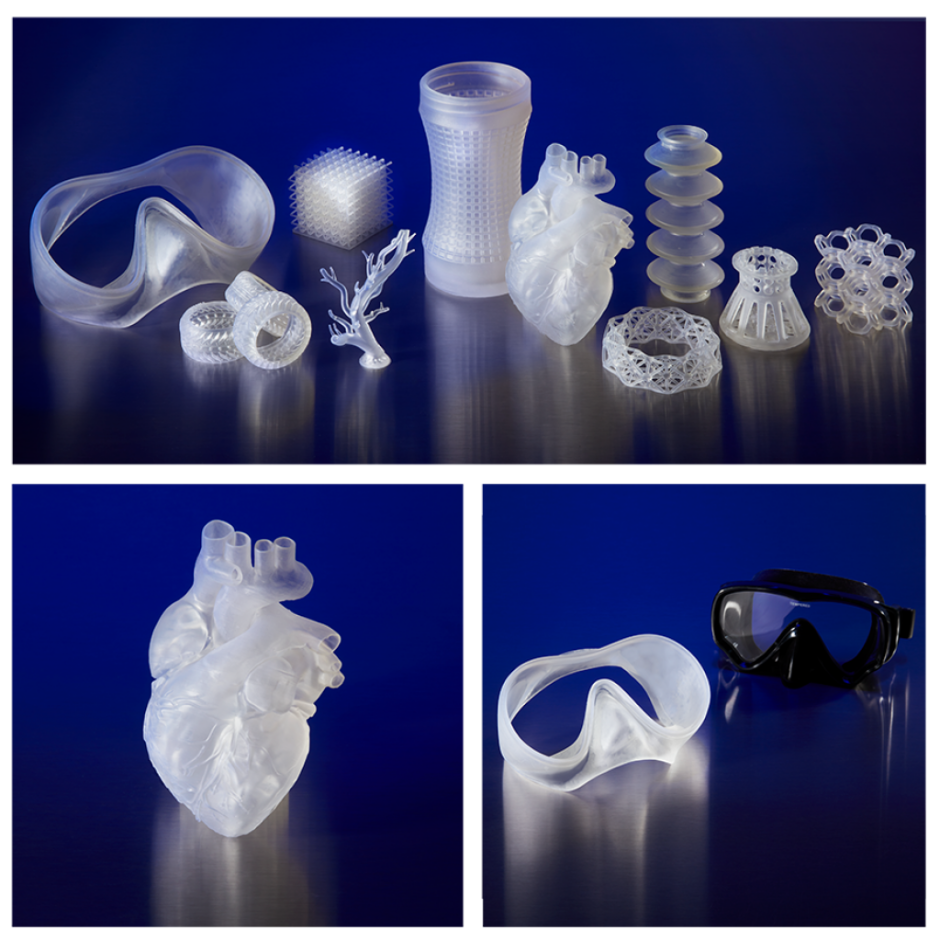

Our softest Engineering Resin, this 50A Shore durometer material is suitable for prototyping parts normally produced with silicone.

Choose Elastic 50A Resin for parts that will bend, stretch, compress, and hold up to repeated cycles without tearing, and spring back quickly to their original shape

· Wearables and consumer goods prototyping

· Medical models and devices

· Compliant features for robotics

· Special effects props and models

사용가능 프린터 (Printer Compatibility)

  Form 2  Form 3  Form 3B  Form 3L  Form 3BL

사용가능 레진탱크 (Resin Tank)

  Form 2 LT  Form 3 Tank V2/V2.1  Form 3L Tank

적용가능 레이어 두께 (Layer Thickness)

  Form 2      100 microns

  Form 3/3B      100 microns

  Form 3L/3BL      100 microns

※ 출력 후 추가 UV 경화가 필요합니다.

재료 물성 및 안전관련 자료 (Material Data Sheet)

- 재료 물성표 (Materials Technical Data Sheet) : 다운로드

- 물질안전보건자료 (Materials Safety Data Sheet) : 다운로드

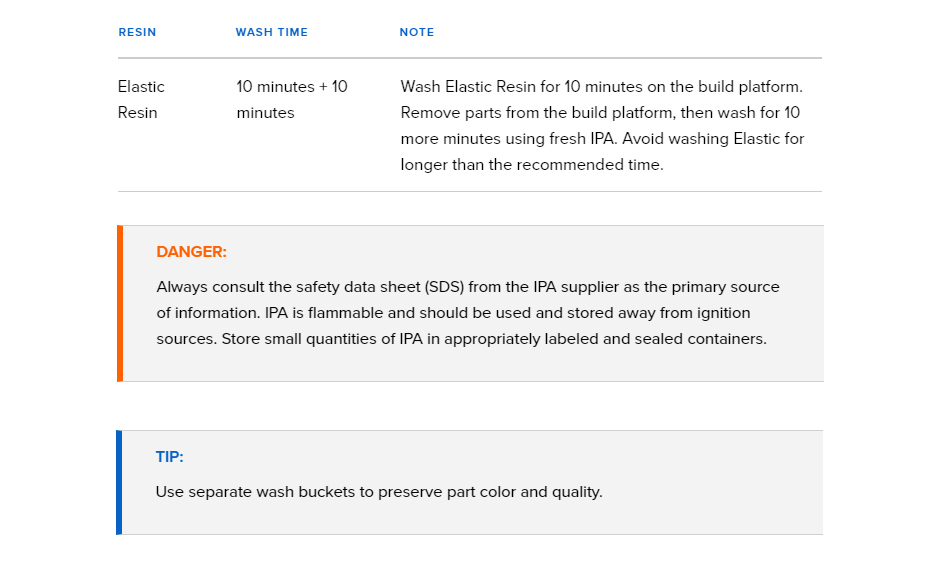

Form Wash 세척 시간 (Form Wash Settings)

- Form Wash 설정표 (PDF, All Formlabs Resins) : 다운로드

Do not leave Elastic Resin parts in IPA for longer than 20 minutes total, as excessive alcohol exposure affects the quality of the final part.

Wash Elastic Resin for 10 minutes on the build platform. Washing the platform removes any excess resin and makes it easier to remove parts from the build platform. After removal, wash for 10 more minutes using fresh IPA for a total of 20 minutes wash time. The surface of Elastic Resin parts may feel slightly sticky after washing.

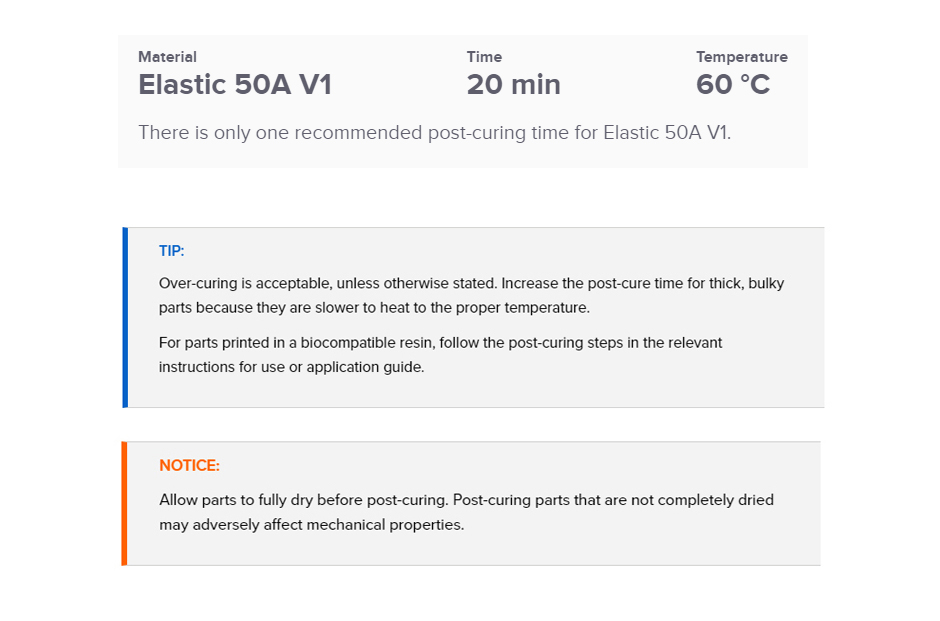

UV 후경화 시간 및 온도 (Form Cure Time and Temperature Settings)

※ UV 후경화는 반드시 출력 완료 후 세척 및 완전 건조가 우선되어야 합니다.

- Form Cure 설정표 (PDF, All Formlabs Resins) : 다운로드
